| Beyond
Pointing and Shooting |
| Before reading this
article, make sure you understand all of the principles in the earlier
article called Point! Shoot! |
| LIGHT
Photography is all about capturing light, but not all light is created
equal. Landscape photographers in particular talk about the
"golden hour" around sunrise or sunset when the sun is low on the horizon
and the light contains more yellow and red than usual. Unfortunately
the golden hour is often more like a golden five minutes, so you often
have to move fast to make the most use of this very warm illumination.
It's sometimes possible to compensate for the lack of good light by using
filters, such as "warming" filters which can enhance a sunset or even a
normal daytime photo. However, it's very easy to overdo this
effect and end up with something which looks artificial. Using a
warming filter is definitely a matter of taste, but there are two types
of filter which you should consider buying for every lens in your collection.
The first essential filter is a skylight or its close cousin the
UV
filter. The latter in particular is said to reduce the
amount of haze in photos taken of distance subjects such as landscapes,
but perhaps a more important reason to have one of these filters on the
front of every lens you own is that they reduce the risk of damaging the
front glass element of the lens. I've twice dropped lenses
onto hard surfaces and had my heart sink when I've seen the front piece
of glass smashed, only to discover with relief that it was the skylight
which was broken, leaving the lens in perfect condition. Less
dramatically, a skylight or UV filter will also reduce the number of scratches
which the lens receives.
The second essential filter is a polarizing filter.
These work exactly like polarized sunglasses, dramatically cutting down
haze and intensifying the colors of the photograph. They are
particularly effective for photographs of the sky, turning it a deep blue
and adding contrast to any clouds. They also have a very good
effect with water, eliminating most of the reflections and making things
under the surface, such as a coral reef, much more visible.
There are two types of polarizing filter, linear and circular;
if your camera has auto-exposure and auto-focus then you probably need
to buy a circular polarizer, because the linear polarizer will probably
interfere with these functions. The dramatic results which
this filter gives you comes at a cost - you'll lose up to two stops of
light when using a polarizing filter. For landscape photography
this is usually affordable, but for airshow
photography it's usually too high a price to pay, since the fast shutter
speeds required usually mean that the aperture is already opened about
as wide as it can go. Although two stops is usually accurate,
the exact amount of light you lose depends on how effectively the filter
is doing its job, which in turn depends on two things - its orientation
relative to the scene you're photographing, and its orientation to the
main light source, which is usually the sun when you're outside.
Whenever you use a polarizing filter you should rotate it after pointing
at the subject you want to photograph. As you rotate the filter,
you'll actually see in the viewfinder the difference it's making; when
the scene seems darkest, that's when it is having most effect, so you should
take the photo with it in this position. In addition, a polarizing
filter isn't equally effective in all directions, instead it has most effect
when it's at 90 degrees to the sun or other dominant light source.
Put your thumb and first finger at right angles to each other; if
you keep your finger pointed towards the sun and at the same time rotate
your wrist, the directions to which your thumb can point will be the directions
where the filter will have most effect. If you point the lens
directly towards the sun or directly away from the sun then the filter
will have no effect at all.
There are several problems associated with using polarizing filters with
wide angle lenses. Since the filter's effectiveness varies
depending on its orientation to the sun, part of the sky will be deep blue
and parts will be lighter blue, which looks strange in the final photo.
Very wide angle lenses usually have a large diameter filter screw, and
large diameter polarizing filters are very expensive. Worse
yet, many very wide angle lenses don't have a filter screw at all, and
the front element of the lens is often very convex, making it physically
impossible to attach a screwable filter on the front. Another
difficulty which happens even with lenses which are only of medium wideness
is vignetting, which refers to the corners of the photograph becoming
dark and underexposed. This happens because the filter itself
blocks part of the light entering the camera. If the polarizing
filter is mounted on top of a skylight then the problem becomes even worse,
and you might need to remove the skylight and just use the polarizing filter
on its own.
Apart from its briefness, another difficulty with golden hour photography
is that while the light is superb, there often isn't very much of it.
In order to get enough for a proper exposure, landscape photographers usually
have to use a slow shutter speed. Since sharpness is a highly
desired goal of landscape photography, this typically means using a tripod,
since handholding the camera at a slow shutter speed is likely to cause
blur. Tripods are also a vital accessory if you're doing night
photography of cities, indoor architecture, or one of my own specialties,
aircraft museums.
Luckily, tripods are one of the few items of photographic equipment which
are standardized across all manufacturers, so any brand of camera will
fit without problems on any brand of camera tripod. The purpose
of a tripod is to reduce vibration caused by the motion of your body during
a longer than usual exposure, but how can you take the photo without introducing
vibration when your finger presses the shutter release on the tripod-mounted
camera? There are two main ways, either (1) a remote
control like a cable release which is physically connected to the
camera or a wireless remote control which works like a TV remote control
or (2) use the camera's self-timer to automatically release the shutter
when the vibrations have died down after you've pressed the shutter release.
The self-timer is obviously cheaper and less fussy to use, but you have
less control over the exact moment when the photograph is taken, and a
cable release is much better when you put the camera into bulb mode
to take a really extended exposure of 15 seconds, 30 seconds, or longer.
Another
source of vibration which affects a camera on a tripod is called mirror
slap, which occurs when the mirror inside an SLR camera swings up as
the shutter is released, directing light away from the viewfinder and towards
the film or digital sensor. This is most often a problem when
you're using a telephoto lens and is usually worst when the exposure is
around 1/10th of a second in duration, plus or minus about 2/10ths of a
second. The solution in this case is to enable the camera's
mirror
lockup feature; you first compose and focus the photo, then engage
mirror lockup and then a few seconds later, after the mirror slap vibrations
have died down, the camera automatically takes the photo.
Exposure
compensation is a technique which should be in every photographer's
repetoire of tricks. It means overriding the camera's decision
about the correct exposure for the photo, and telling the camera to let
either more or less light in than it would otherwise have done. Exposure
compensation is needed because all automatic cameras' exposure systems
try to turn every photo to the equivalent of 18% grey, which is
the shade of grey 18% of the way from pure white to pure black.
Most of the time this is appropriate, but if the subject is very bright
or very dark then there's a high probability that the camera will choose
the wrong exposure. If your subject is a black bird like a
raven, then the camera is likely to turn it to 18% grey and everything
else will be grossly over-exposed. On the other hand, if you're
taking a photo in snow, or doing airshow
photography, then the camera will try to turn the snow or the sky to
18% grey, and everything else will be severely under-exposed.
In fact, dark subjects should look dark and bright objects should look
bright, so when photographing the raven you should dial in negative exposure
compensation to tell it to underexpose the shot, and when shooting scenes
with snow or lots of sky then you should dial in positive exposure compensation
to tell the camera to overexpose the bright subject. Typically
you would dial in around one stop (i.e. -1 or + 1) of exposure compensation,
or occasionally two stops if a lot of compensation is required.
|
| FLASH
Sometimes there just isn't enough natural light available to take a photograph,
and you have to resort to a flash to provide the necessary illumination.
Unfortunately, this is far from a free ride, and there's quite a lot of
technique involved in getting a good looking photograph while using a flash.
Some of these techniques are relatively simple, like never pointing the
flash directly towards a window, mirror or other reflective surface, in
order to avoid very strong reflections from appearing in the photo.
Also, most people know by now that flash has a very limited range and won't
help at all if you're taking a photo in a large sports stadium.
However other techniques for using flash require a lot more thought.
The main problem with flash is that it creates very "hard" shadows, much
like strong sunlight. This is a problem in almost all photos,
but it's particularly bad when you're taking portraits of people, and it's
especially bad indoors, because the walls make the shadows much more visible
than they would be outdoors, say in a forest. The easiest way
to deal with harsh shadows indoors is to use bounce flash, which
can only be done with a flash which has a tiltable head, or with a flash
which can be fired remotely, while it's not in the hotshoe on top
of the camera. In either case, take the photo with the front
of the flash pointed towards the ceiling (or a wall, if that's more appropriate),
rather than directly towards the subject. Instead of illuminating
the subject from a small point source, the light will bounce off the ceiling
and the walls from many directions, reducing the shadows or eliminating
them completely. Professionals often use a white umbrella
for this purpose, and multiple light setups are also a staple of studio
photography. Amateurs who don't want the expense or inconvenience
of carting around the professional's studio equipment can use diffusers
such as embossed clear plastic fittings which fit in front of the flash,
or pieces of white cardboard above and in front of the flash, or relatively
cheap commercial units like the Stoffen Omnibounce which fit over the front.
Even a handkerchief placed over the front of the flash can be used to soften
the light.
Another problem with flash which most people know about is red-eye,
or its animal equivalent green-eye. In the case of humans,
red-eye is caused by light being reflected off the veins crossing the surface
of the retina (the brain filters this out so we're not aware that these
veins are there); in animals the reflection is caused by a reflective layer
called the tapetum which enhances night vision. This effect
is strongest when the flash is directly in line with the lens, so getting
the flash off the camera will help a lot. My preferred solution
is to fix the red-eye later in PhotoShop or some other image processing
software. Some cameras perform several pre-flashes to close
the subject's pupils, but this can be very distracting for both people
and animals.
One essential but tricky technique to learn is how to balance flash
against natural light. This situation arises when you're going
to have illumination from both natural light and flash. Situations
when this can occur is when you're photographing a sunlit scene from inside
a building or some other dark enclosed space, or when your subject is backlit
and the side facing you is in deep shadow and needs to be made brighter.
The trick to balancing the flash and the natural light is to set the camera
so that the sunlit part of the scene will be correctly exposed, and then
adjust the flash output so it doesn't overwhelm the area you want it to
illuminate. For instance, if the surrounding landscape needs
a shutter speed of 1/125th of a second and aperture of f16, adjust the
camera to these settings and then enable the flash. If the
camera has effective through-the-lens (TTL) metering, then
you can allow the camera to first switch on the flash and then switch it
off once the correct amount of light has hit the subject. If
you don't have TTL metering, or it's not working very well, then you can
use flash exposure compensation to reduce the amount of light emitted
by the flash, in the same way that regular exposure compensation can be
used to adjust an exposure. Finally, if your flash allows you
to manually adjust the amount of light it outputs, then you can use this
to balance the lighting.
Night
fill flash adds another complexity to this technique. If you
want to photograph a person against a brightly lit cityscape, then you'll
need to set the camera on a tripod and set it to correctly expose the background
- often this will require a shutter speed of several seconds.
Then have your subject stand in front of the camera, illuminate them using
fill flash, and continue to leave the shutter open long enough to properly
expose the background lights. Of course you'll have to tell your
subject to stay perfectly still while the camera shutter remains open.
The shutter mechanism in most cameras consists of two "curtains".
When you release the shutter, the first curtain starts moving and exposes
the film or digital sensor to light coming through the lens, then near
the end of the exposure the second curtain starts moving and blocks the
light once again. If it's a long exposure, then there will
be a period of time when the entire piece of film or the entire sensor
is exposed to the light, but if it's a short exposure (say 1/500th of a
second) then both curtains will be moving, one after the other, and at
any one moment only part of the sensor will be exposed to the light.
Most flash units can only be used when the entire sensor is exposed, which
means that there's a definite limit to the maximum shutter speed which
you can use with flash. If you want to use a telephoto lens
and flash to illuminate birds or other wildlife, then the maximum flash
sync speed might be an important factor when you're buying the camera,
since you'll need a high shutter speed to prevent ambient light from producing
visible camera shake. Some cameras only allow flash at 1/90th
of a second or slower, while high-end units might let you go up to 1/500th
of a second. High-speed sync is a feature where the
flash pulses on and off many times during the course of the exposure, allowing
the flash to be used at even very high shutter speeds. However,
much of the light falls on the lens side of the curtains rather than hitting
the film or sensor, which means that much less illumination is provided
for the photograph.
There are occasions when flash illumination provides benefits over regular
lighting. For instance, the duration of a flash is extremely
short, around a millisecond or less, so it can be used to stop action while
still providing plenty of light. A classic example of this
is photographing hummingbirds in flight at a flower or a feeder.
The flash not only provides enough light to close down the aperture and
get lots of depth of field (see below), but it completely freezes the motion
of the bird's wings and illuminates blur, and, if you make the flash the
dominant illumination then the background will be completely dark, separating
the bird completely from any distractions in the background.
Another benefit for both wildlife photographers and portrait photographers
is the catchlight which the flash creates in the subject's eyes.
This is a bright spot on the eye, which gives a feeling of life to the
subject - photos without a catchlight often look a bit dead to the trained
eye.
If you're using flash to illuminate a moving subject then it's helpful
to know about first curtain and second curtain operation.
In brief, this refers to the timing of the flash burst relative to the
curtain movement. In first curtain operation, the flash is
fired as soon as the first curtain has finished moving, and before the
second curtain has started moving. In second curtain operation,
the flash is fired just before the second curtain starts moving.
This is important in situations such as photographing a stockcar in a floodlit
stadium at night using a tripod, where lighting is partly provided by the
flash and partly by the floodlights. If you use first curtain
synchronization then after the flash has finished, ambient light will continue
to illuminate the car, creating a blur in front of the image of the car
which was magically halted by the flash. If you use second
curtain synchronization then the ambient light will create a blur behind
the frozen image of the car, which gives an interesting impression of speed
and generally looks better. It's always seemed to me that second
curtain operation is more useful, but for some reason most camera manufacturers
default to first curtain.
|
DEPTH
OF FIELD

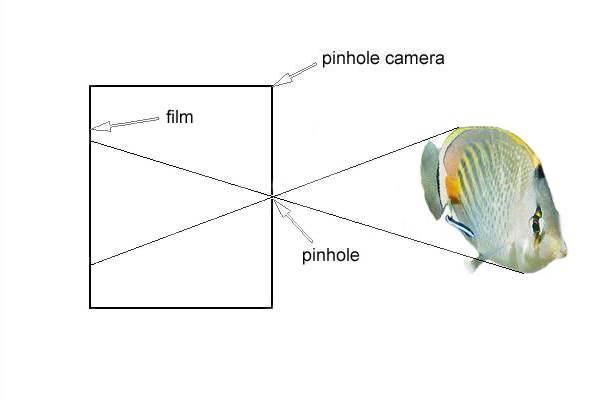

The simplest type of camera is called a "pinhole camera". It
consists of a box with film on one side and a single small hole on the
side opposite the film. There's no lens, and the "shutter"
is often just a piece of cardboard or tape which is used to block the pin
hole. Since the pin hole is often very small, not much light
can enter the camera and an exposure often takes several seconds or even
minutes to complete. Since it's so simple, it's a very useful tool
for understanding how a regular camera works.
As you can see, a beam of reflected light from the top of the fish would
pass through the pin hole and hit the film near the bottom; in the same
way, a beam of light from the bottom of the fish would pass through and
hit the film near the top. The image of the fish created on
the film would therefore be upside-down, and it would also be inverted
left-to-right. This also happens with regular cameras, and
even with the human eye - but the brain automatically uninverts the image
for us! |
An interesting thing happens if we make the pin hole bigger.
As the black lines show, light from the same point can hit the film at
different places. In the same way, the red lines show that
light from different points on the fish can hit the same point on the film.
In either case, the result is blurring of the image. Light
from the same point on the fish hits a circular area on the film, creating
a so-called circle of confusion. The larger the hole,
the larger the circle of confusion, and the blurrier the photo becomes.
What's true for pinhole cameras is also true for other cameras.
If the lens on a regular camera is set to focus at 10 meters, then everything
which is exactly 10 meters from the camera will be clearly focussed.
However, everything which is less than 10 meters or greater than 10 meters
away will be less focussed, and the larger the aperture, the less focussed
they will be. The size of the aperture therefore directly determines
the depth of field, which is the depth of the viewed image which
is well-focussed. If all other things are equal, then a lens
which is set to f4 will always have a "shallower" depth of field than the
same lens set to f22.
A "deep" depth of field is almost always very desirable for photographs
such as landscapes, architecture and insect photographs. However,
there are situations in which shallow depth of field has advantages; the
most common is for portraits of a person's face or an animal's head.
In these situations, having the background blurred out of existence often
adds a lot of impact, by removing distracting elements from the photo.
Insect
photography is one specialized area where photographers constantly
struggle to get more depth of field. Insects are often very
small, so insect photographers rely on special equipment such as extension
tubes or macro lenses which allow the camera to focus closer than it would
normally be able to. A telephoto lens might not be able to
focus on anything closer than 3 meters away from the camera, but a dedicated
macro lens can focus on something which is 30 centimeters away, or less.
By getting closer, the insect will appear larger in the photograph, but
one also discovers that depth of field is related to the distance of the
camera from the subject. The further the camera is from the
subject, the greater the depth of field is, and the closer the camera is,
the shallower the depth of field is. Therefore, if the subject
is 20 or 30 centimeters away from the camera, then even a macro lens which
is set to f32 might have only 3 or 4 millimeters depth of field.
This is why macro photographers will often use a tripod or flash to decrease
the size of the aperture and increase the depth of field, even if there's
enough light for a normal photograph to be taken without special effort.
The third factor which affects depth of field is the focal length of the
lens. A telephoto lens with a focal length of 300mm or 400mm
has a much shallower depth of field than a wide-angle lens of 15mm or 20mm.
The telephoto lens might have a depth of field of only 3 meters for a subject
which is 100 meters away, whereas the wide-angle lens might be able to
clearly focus all the way from flowers a meter from the camera to mountains
several kilometers away. Many digital cameras have sensors
which are smaller than regular 35mm film, which means that they need only
very short focal length lens to cover the same angle of vision; since the
lens has a short focal length, this means that the depth of field is much
deeper than for a 35mm camera covering the same angle of vision.
For instance, a Canon G2 digital camera has a very small sensor and a 7
- 21mm zoom lens to cover it. This lens covers an angle of
vision which is equivalent to a 34 - 102mm lens on a 35mm camera, but because
it's the actual focal length of the lens which determines the depth of
field, the G2 will have much greater depth of field than a 35mm camera
which is shooting exactly the same scene with a 34 - 102mm lens.
As you can imagine, this increased depth of field is a particular advantage
in macro photography.
|
| COMPOSITION
As I mentioned earlier, all the good technique in the world won't necessarily
create an interesting photograph, but it will prevent an interesting subject
from being ruined by unnecessary distractions. As you master
the technical aspects of photographs, you should simultaneously try to
develop the principles of composition which will lift your photographs
above the average. This section contains a few random ideas
to get you thinking beyond the mechanics of the camera and other equipment.
One
way to improve the composition of your photographs is not to look at the
subject. Instead, look at the background and take special note
of anything which might be distracting. Examples of this are
poles, lines or branches which intersect with the subject, and things which
are brighter than the subject. If you see anything like this,
trying moving to one side or the other in order to get the distracting
element out of the shot. For the same reason, shifting your
perspective so that you're either lower or higher than head height can
remove distractions. Changing your upwards or downwards orientation
often has the additional benefit that it gives a refreshing new perspective
on the subject which can enliven even rather ordinary subjects, a technique
which is widely used in portrait photography.
One tried and true technique which can make outdoor shots more interesting
is to frame the main subject with a tree or some other relevant feature
in the foreground to give it depth. It's also very valuable
to give thought to the sequence of events when a viewer looks at the photo.
Most people expect the subject to be at the center of the photograph, so
if you place the subject slightly off-center then this adds some amount
of interest to the picture, by forcing the person to decide for themselves
what is of most interest in the shot. The "rule of thirds"
suggests placing the subject a third of the way in from two edges of the
frame. Lines or curves which are pointing towards the subject
are a great way to "lead the person's eye" into the photo and create a
more dynamic feeling.
If the subject is placed diagonally across the frame, this can be more
interesting than horizontal or vertical. This can sometimes
work even for normally vertical subjects like people and buildings.
In the same way, if you're putting together a gallery of photographs then
try to get a mixture of portrait (vertical) and landscape
(horizontal) shots. This is difficult for some types of photography,
such as airshows, since some subjects lend themselves to one orientation
or the other. Another way to lift photographs beyond the ordinary
is to abstract out a very small part of the scene or the subject.
Instead of photographing the whole animal, photograph just its eye.
It's easier for a person to apply a mental label to a complete animal and
dismiss it as "just a seagull", but photographing the eye and the feathers
around it forces the person to actually look at the thing for what it is,
and see the beauty which is usually overlooked.
If the subject is moving then you should usually leave more space in front
of the subject than behind it so it doesn't look crowded, but has room
to move into the picture. Similarly, if your subject is a person
or animal which is looking towards the side of the shot, leave more space
in front of its head than behind it, so it has some space to look into.
Flying planes or birds should be placed slightly nearer the top of the
frame than the bottom, to give an impression of lift. If you've
got moving water like a river or waterfall, then using a tripod and a slow
shutter speed usually gives a much more pleasing blur than a high shutter
speed which freezes the water motionless. |
Read
more about these specialized types of photography:
airshow
photography
insect
macro photography
travel
photography
underwater
photography
 |
